9-2

POM Standards Plastic Steel Standard models: POM: POM Standard models , AMS and POM , are good for uses of medium to low linear displacements with very little friction generated during operations , such as punching machines.

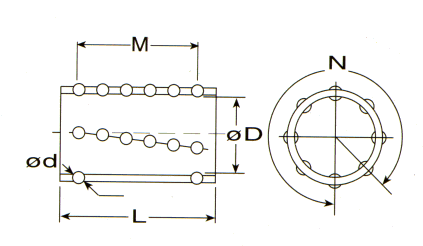

D-L	N	M	d
14-35	11	7	2.5mm
14-40	11	8	2.5mm
16-30	11	6	2mm
16-35	11	8
16-40	11	9
16-25	11	4	3mm
16-30	11	5
16-35	11	6
16-40	11	7
19-40	12	7
19-50	12	8
19-60	12	10
20-35	12	6
20-40	12	7
20-50	12	8
20-60	12	10
22-40	13	6	3mm & 1/8"
22-50	13	8
22-55	13	8
22-60	13	9
25-40	14	6
25-50	14	8
25-60	14	9
25-70	14	11
25-80	14	13
28-40	15	6
28-50	15	8
28-60	15	9
28-70	15	11
28-80	15	13
28-40	14	5	4mm & 5/32"
28-50	14	6
28-60	14	7
28-70	14	9
28-80	14	10
32-40	15	5
32-45	15	6
32-50	15	7

D-L	N	M	d
32-55	15	7	4mm & 5/32"
32-60	15	8
32-70	15	9
32-80	15	10
32-90	15	11
32-95	15	12
32-100	15	13
36-40	16	5	4mm & 5/32"
36-45	16	6
36-50	16	6
36-55	16	7
36-60	16	8
36-70	16	9
36-80	16	10
36-90	16	11
36-95	16	12
36-100	16	13
37-40	16	5
37-45	16	6
37-55	16	7
37-60	16	8
37-70	16	9
37-80	16	10
37-90	16	11
37-95	16	12
37-100	16	13
38-40	15	4	5mm & 3/16"
38-50	15	5
38-60	15	6
38-70	15	7
38-80	15	8
38-90	15	10
38-100	15	11
40-60	16	6
40-70	16	7
40-80	16	8
40-90	16	10
40-100	16	11

D-L	N	M	d
40-110	16	12	5mm & 3/16"
42-50	16	5
42-60	16	6
42-70	16	7
42-80	16	8
42-90	16	10
42-100	16	11
45-70	17	7
45-80	17	8
45-90	17	10
45-100	17	11
48-50	18	5
48-80	18	8
48-90	18	10
48-100	18	11
48-110	18	12
50-50	18	5
50-60	18	6
50-70	18	7
50-80	18	8
50-90	18	10
50-100	18	11
50-110	18	12
60-90	20	10	5mm
60-100	20	11
60-110	20	12
60-120	20	13
60-130	20	14
60-90	18	9	6mm
60-100	18	10
60-110	18	11
60-120	18	12
60-130	18	13
60-90	18	8	1/4"
60-100	18	9
60-110	18	10
60-120	18	11
60-130	18	12
