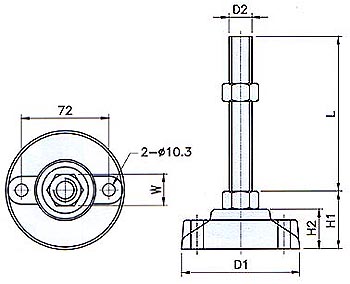

Level pad


  • Material : Base-PA
                   Spindle-Steel or Stainless steel (SUS304)
(mm)
ITEM NO L H1 H2 D1 D2 W Weight(g) Load(kg)
Steel SUS304
G111-210 G121-210 100 46 34 100 M16 24 322 600
G111-220 G121-220 150 388
G111-230 100 48 M20 30 456 900
G111-240 G121-240 150 547
　※Base to be tapped before installation
