Wave Washers (For bearing use)

Unit.mm

Size No.		Bearing dia	d1	D1	H	t	Applicable bearing Nos.
BWW	624	13	8.5	12.5	1.9	0.15	695		624	633
	625	16	12	15.0	2.1	0.15			625	634
	626	19	12.7	18.1	2.5	0.2	698	607	626	635
	608	22	14.5	21.0	2.4	0.2	6900	608	627	636
	629	26	18.6	24.6	3.5	0.2		6000	629	637
	6001	28	20.9	26.9	3	0.25	6902	6001		638
	6200	30	21.0	30.0	4.1	0.25	6903		6200	639
	6201	32	23.0	32.0	4	0.3		6002	6201
	6202	35	26.0	35.0	3.5	0.3		6003	6202	6300
	6203	40	31.0	40.0	5	0.3			6203
	6204	47	34.0	47.0	5	0.3	6906	6005	6204	6303
	6205	52	42.0	52.0	8	0.4			6205	6304
	6206	62	48.0	62.0	6.5	0.5	6908	6007	6206	6305	6403
	6207	72	54.0	72.0	7	0.5	6910		6207	6306	6404
	6208	80	60.0	80.0	8.5	0.5	6911	6010	6208	6307	6405
	6210	90	68.0	90.0	7	0.6	6913	6011	6210	6308	6406
	6211	100	83.0	100.0	7	0.9	6914	6013	6211	6309	6407
	6212	110	85.5	110.0	8	1.0	6916	6014	6212	6310	6408
	6213	120	91.5	120.0	9	1.0	6917		6213	6311	6409

●Material=Carbon spring steel. Hardness=HRC40~50. Finish=Black phosphate coating (ACP.)

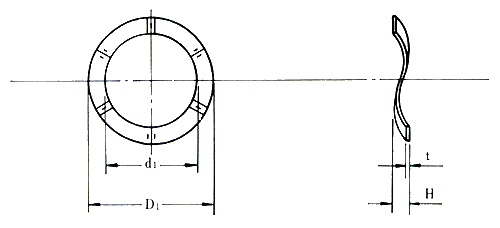

None:	1.Free hight H shows when 3 waves are at the same height 2.Internal diameter d1 shows inscribed circle and outer diameter D1shows circumscribed circle.
