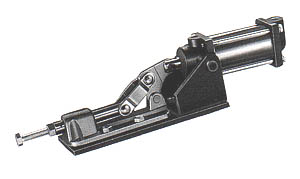

GH-36330M-A
The 15.6mm diameter plunger travels forward 31.8m/m from and open to a closed and locked position. Plunger is drilled and tapped to accept a M10xP1.5 spindle or to receive your customer fixture.
WEIGHT:2650g
Model PORT SIZE P A B D E F G H I J K L M
GH-36301-A 1/8NPT 187 40 8.3 32.2 GH-SA-042007 13.6 15.9 15.9 - #8 12 12 6.4
GH-36003-A 1/8NPT 250 69.5 7.1 58 GH-SA-085012 27.2 33.3 36.5 - 4.8 19.7 19.7 11.1
GH-36330-A 1/8NPT 347 84 12.7 51.5 GH-SA-106515 26.2 41.3 34.9 41.3 8 30 30 15.9
GH-305-EA 1/8NPT 306 77.2 9.5 75 GH-SA-126517 34.8 41.3 41.3 - 8.7 23.6 23.6 15.9
