GH-702-CA |
The weldable air-clamps open widely
for easy loading and unloading of workpiece. The user supplies required hold down bar and suitable spindle. |

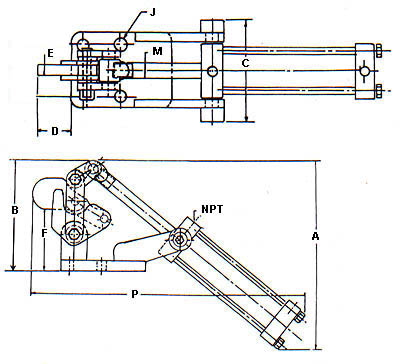

Model | PORT SIZE | P | A | B | C | D | E | F | J | M |
GH-702-CA | NPT | 260 | 185 | 103 | 32.2 | 27 | 8 | 58 | 8.5 | 12 |
GH-702-DA | NPT | 315 | 315 | 142 | 58 | 34 | 13 | 81 | 11 | 14 |
