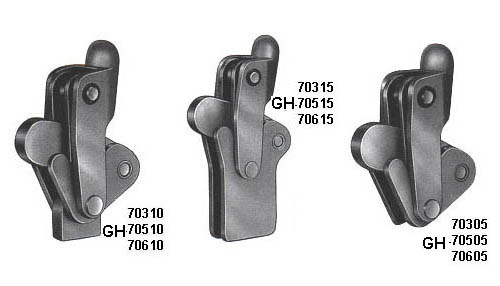

GH-70305, GH-70310,
GH-70315 |

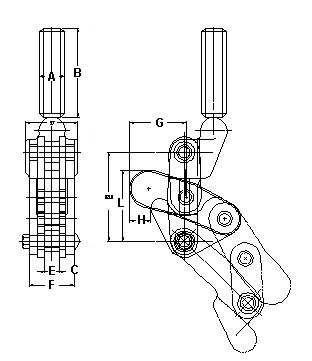

UNIT : mm |
These heavy-duty clamps provide
the strong and durable function to meet the requirement of high
precision repeatability for car manufacturing industry, Drop forged
parts are accurately machined and equipped with hardened pivot pins
and bushings. The clamps are fitted with hardened and ground bushes
and pivot pins. |
MODEL | A | B | C | D | E | F | G | H | K | K' | L | HOLDING CAPACITY |
WEIGHT |
GH-70305 | 17.5 | 125 | 4.8 | 10 | 31.8 | 40 | 15 | ¡@ | 51 | 500KG | 760G | ||
GH-70310 | 20 | 29 | 850G | ||||||||||
GH-70315 | 50 | 45 | 940G | ||||||||||
GH-70505 | 22.2 | 4.8 | 12.3 | 40.3 | 57 | 26 | ¡@ | 73 | 1000KG | 1330G | |||
GH-70510 | 28 | 38 | 1490G | ||||||||||
GH-70515 | 63.5 | 51 | 1590G | ||||||||||
GH-70605 | 27 | 6.3 | 16 | 48.6 | 74.3 | 33 | ¡@ | 91 | 2000KG | 2550G | |||
GH-70610 | 33 | 51 | 2830G | ||||||||||
GH-70615 | 76 | 63.5 | 2950G |
