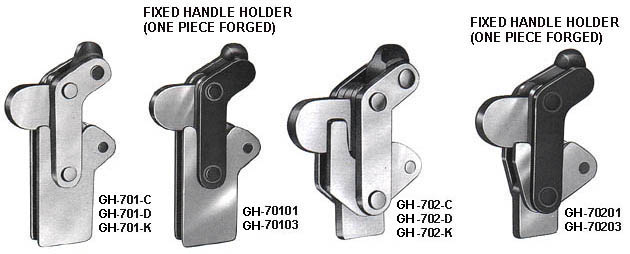

GH-702-C GH-702-D
GH-702-K |
|
Extreme versatility and compact
design make these clamps excellent for heavy-duty and high production
applications, and also allows the user to customer fit his clamping
requirement. Forged steel construction, hardened steel pins, and
bushings at pivot points assure durability. Clamps are supplied with a pivot base and a separate handle. The user welds pivot base and handle in desired position and supplies required hold down bar. GH-701 series. Ideal where mounting space is limited. Base can be drilled or weld. Clamps are supplied with a separate handle. The user welds handle in desired position and supplies required hold down bar. |
UNIT : mm |
MODEL | HOLDING CAPACITY |

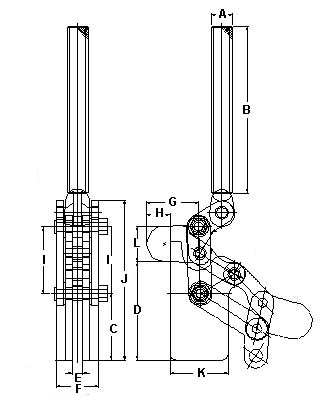

A | B | C | D | E | F | G | H | I | J | K | L | WEIGHT |
GH-702-C | 200KG | 17.3 | 152.4 | 23.8 | 48 | 8 | 31.8 | 40 | 17 | 50.8 | 93 | 26 | 28 | 660G |
GH-702-D | 500KG | 21.7 | 152.4 | 33.7 | 69 | 13 | 42 | 48.8 | 24.6 | 70 | 132 | 36.4 | 39 | 1470G |
GH-702-K | 1000KG | 27.2 | 152.4 | 37.2 | 84 | 16 | 46 | 53 | 25 | 90 | 167 | 54 | 52 | 2610G |
GH-701-C | 200KG | 17.3 | 152.4 | 50 | 14.5 | 8 | 31.8 | 40 | 17 | 50.8 | 121 | 44.5 | 28 | 600G |
GH-701-D | 500KG | 21.7 | 152.4 | 66.8 | 102 | 13 | 42 | 48.8 | 24.6 | 70 | 165 | 50 | 39 | 1590G |
GH-701-K | 1000KG | 27.2 | 152.4 | 80 | 123 | 16 | 46 | 53 | 25 | 90 | 205 | 63 | 52 | 2650G |
