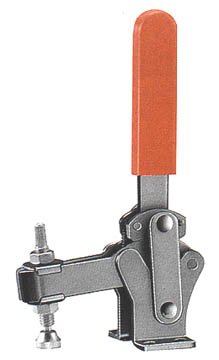

GH-60130
and
GH-60131

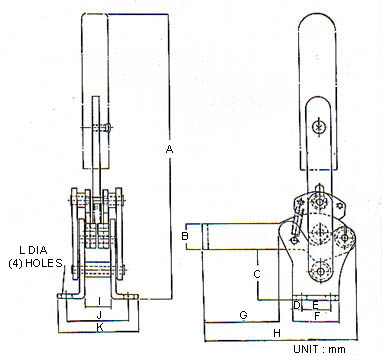

UNIT : mm
HANDLE MOVES : GH-60130(165o),GH-60131(170o)
BAR MOVES : GH-60130(70o),GH-60131(85o)
*One touch cam type toggle supplied with GH-SF-38300 for GH-60130, GH-SF-12400 for GH-60131 respectively and red plastic hand grip.
Model Holding
Capacity		 Weight A B C D E F G H I J K L
GH-60130 250kg 680g 220 19 39 6.5 22 35 58 118 20 48 62 8
GH-60131 350Kg 159g 275 22 60 9 30 48 100 178 25 57 77 9
