GH-40323 |
 |
|
GH-40323 |
|

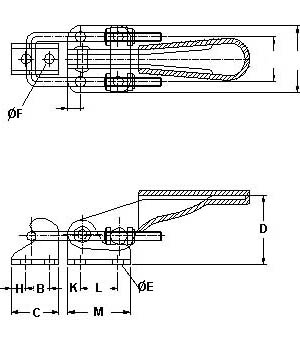

| UNIT : mm |
| *Supplied with latch plate and
red vinyl hand grip. GH-40323-SS |
| Model | Weight(g) | Holding Capacity(KG) |
A | B | C | D | E | F |  G |
H | I |
J | K | L | M | N |
| GH-40323 | 71 | 163.6 | 6 | 9.9 | 19.8 | 5.2 | 15.9 | 26.2 | 4.4 | 2 | 4.4 | 19 | 28.2 | 29.3 | 24 | 57 |
| GH-431 | 225 | 318 | 6.8 | 11.5 | 25.4 | 6.4 | 19 | 39.7 | 6.7 | 3.2 | 6.3 | 31.8 | 44.4 | 41.3 | 38 | 73 |
| GH-40341 | 680 | 900 | 9.5 | 19.1 | 38.1 | 9.5 | 41.3 | 60.3 | 8.6 | 4 | 8.5 | 38.1 | 54 | 74 | 52 | 114.5 |
| GH-40323-SS | STAINLESS STEEL | |||||||||||||||
| GH-431M-SS | ||||||||||||||||
| GH-40341-SS | ||||||||||||||||
