GH-40324
GH-40334
GH-40344

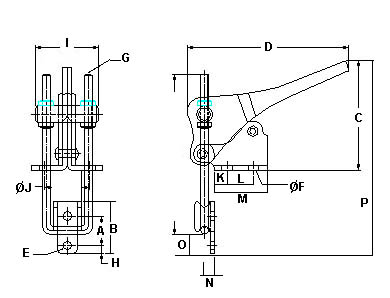

UNIT : mm

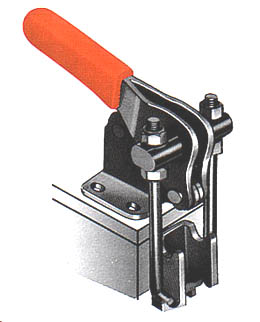

*Supplied with latch plate and red vinyl hand grip.
Model Weight(g) Holding
Capacity
A B C D E F G H I J K L M N O P Q R S
GH-40324 113 225 14.3 25.4 53.5 79 4.4 5.3 M4 P=0.7
M16 P=1
M8 P=1.25
4 31 4 2 13 26 4.7 11.1 70 22 26.5 78.5
GH-40334 250 450 20.6 38.1 61.9 120 7.1 7.1 7.1 41.3 6.35 3 19.1 33.3 8.7 17.5 102 25.4 40.5 114
GH-40344 700 900 27 54 84.1 130.2 8.7 5.3 9.5 60.3 7.9 4 31.8 47.6 12.7 28.6 150 36.5 58 154
GH-40324-SS STAINLESS STEEL
GH-40334-SS
GH-40344-SS
