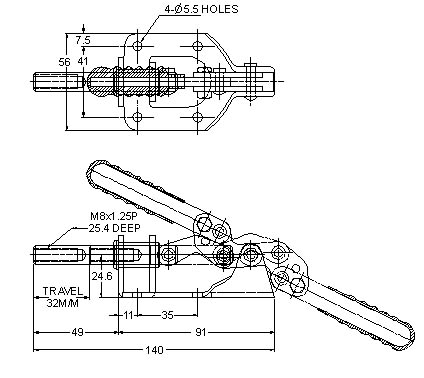

GH-302-FM
and
GH-302-FMSS


UNIT : mm
  • Low Profile
  • Plunger Locks in Extended or Retracted Position
    HOLDING CAPACITY : 136 kg MAX.
    WEIGHT : 300g
    HANDLE MOVES 180o
    PLUNGER TRAVEL : 32m/m
    *Accepts All M8x1.25P diameter spindles.
    Supplied with red vinyl grip.
    Supplied with GH-SA-085012.
