GH-30509M |
UNIT : mm |

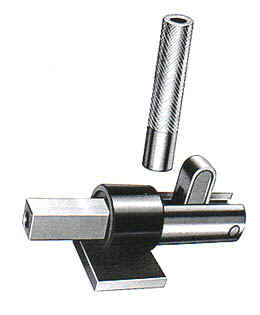

*Compact design with maximum
plunger travel. *Plunger locks in extended position onlt. High strength strrl construction and precisely broached body for square plunger, allow these clamps to be used as pin locating gauges. *Hardened steel pins and bushings fitted at pivot points. *Supplied with separate handle and base. *Users can weld them at desired position. *Clamps can be mounted by drilling holes on the base or be welded at a proper position. |
Model | Holding Capacity |

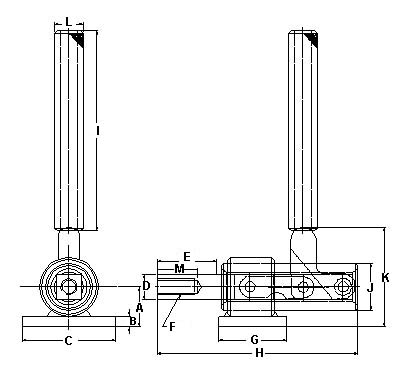

Weight | Spindle | A | B | C | D | E | F | G | H | K | L | M |
GH-30509M | 1136kg | 1330g | GH-SA-125017 | 30 | 8 | 70 | 19 | 46 | M12 P=1.75 | 50.8 | 150 | 74 | 21.7 | 25.4 |
GH-30609M | 2273kg | 2820g | GH-SA-165020 | 40 | 11.2 | 90.5 | 25 | 59.5 | M16 P=2 | 68.3 | 198 | 87 | 27.2 | 38.1 |
