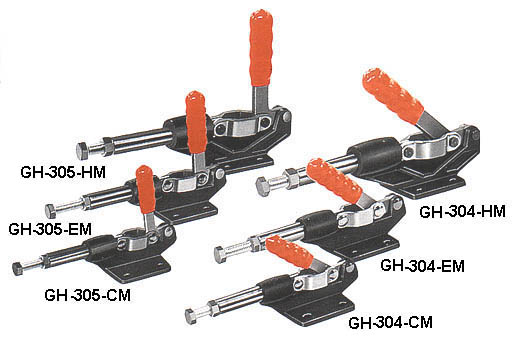

GH-304-CM, GH-304-EM, GH-304-HM
and
GH-305-CM, GH-305-EM, GH-305-HM

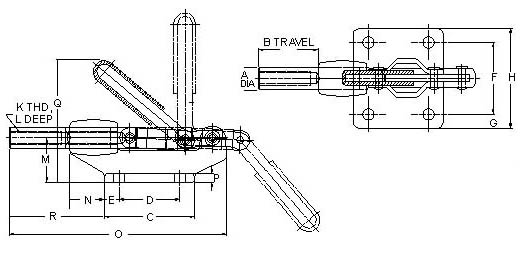

UNIT : mm
  • Available for light,medium or heavy duty operations.Each clamp is supplied with a ductile iron base which is precisely machined for flatness.
    Close tolerances between the base and plunger allow these clamps to be used for pin locating gauges as well as clamping devices. Plunger locks in extended or retracted position.
    Light and medium duty clamps are supplied with our standard heavy duty rivets. Heavy duty clamps are supplied with bushings and removable hardened ground pins.
