METEK

GH-22165
thru
GH-22200



Expanded Selection
Larger Version of 225-D Series
Available in Solid Bar
Slotted Mounting Holes HOLDING CAPACITY : 250 kg MAX.
HANDLE MOVES 88^o, BAR 96^o
*Supplied with No.GH-FC-56212, neoprene tipped spindle assembly. Solid bar supplied with spindle assembly and bolt retainer All models supplied with red vinyl hand grip.

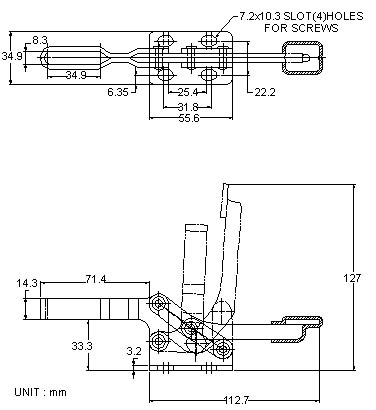

MODEL	B	C	DESCRIPTION	WEIGHT
`GH-22165`	`71.4`	`34.9`	`U-BAR,FLANGED BASE`	`285g`
`GH-22170`	`71.4`	`34.9`	`U-BAR,STRAIGHT BASE`	`285g`
`GH-22175`	`73`	`-`	`SOLID BAR,FLANGED BASE`	`300g`
`GH-22180`	`73`	`-`	`SOLID BAR,STRAIGHT BASE`	`300g`
`GH-22185`	`165.1`	`127`	`OPEN BAR,FLANGED BASE`	`350g`
`GH-22190`	`165.1`	`127`	`OPEN BAR,STRAIGHT BASE`	`350g`
`GH-22195`	`166.7`	`-`	`SOLID BAR,FLANGED BASE`	`365g`
`GH-22200`	`166.7`	`-`	`SOLID BAR,STRAIGHT BASE`	`365g`
