GH-10247
thru
GH-10250
  • Heavy Duty
  • Compact Size
  • Two Stop Provide User with a Choice of Handle and Bar Movement.
  • HOLDING CAPACITY : 450 kg MAX.

  • WEIGHT : 1250g

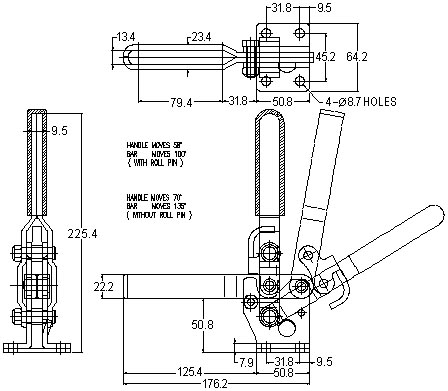

    HANDLE MOVES 58o, BAR 100o
    *Accepts all 1/2-13 diameter spindles.
    U-Bar supplied with flange washers.
    Solid bar supplied with bolt retainer.
    All models supplied with GH-SA-12300 and red vinyl hand grip.
    *Supplied with hardened bushings
    *Removable ground pins
MODEL DESCRIPTION
GH-10247 U-BAR,FLANGED BASE,STRAIGHT HANDLE
GH-10248 U-BAR,STRAIGHT BASE,STRAIGHT HANDLE
GH-10249 SOLID BAR,FLANGED BASE, STRAIGHT HANDLE
GH-10250 SOLID BAR,STRAIGHT BASE,STRAIGHT HANDLE
