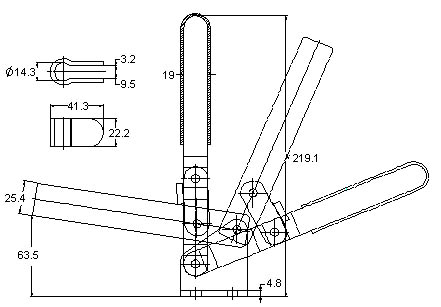

GH-12305
thru
GH-12320


  • Angular Bar
    HOLDING CAPACITY : 364 kg MAX.
    WEIGHT : 990g
    HANDLE MOVES 65o, BAR 100o
    *Accepts all 3/8-16 diameter spindles.
    U-bar supplied with flange washers.
    Solid bar supplied with bolt retainer.
    All models supplied with GH-FC-38312 and red vinyl hand grip.
MODEL DESCRIPTION
GH-12305 OPEN BAR,FLANGED BASE,STRAIGHT HANDLE
GH-12310 OPEN BAR,STRAIGHT BASE,STRAIGHT HANDLE
GH-12315 SOLID BAR,FLANGED BASE,STRAIGHT HANDLE
GH-12320 SOLID BAR,STRAIGHT BASE,STRAIGHT HANDLE
