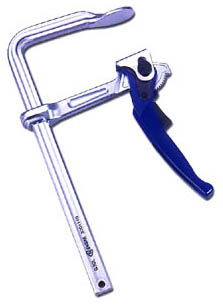

(Push action)
- Ratchet type lever prevents overloading and resists vibration.
- For high pressure, fast action clamping purpose.
- The clamping pressure is measured at the span of 150mm.
| ITEM NO |
SPAN
DEPTH |
RAIL |
WEIGHT |
PRESSURE |
PACK |
| G12L | 120x60 | 13.5x6.5 | 0.50 | 200 | 10 |
| G16L | 160x80 | 16.0x7.5 | 0.54 | 230 | 10 |
| G20L8 | 200x80 | 16.0x7.5 | 0.57 | 230 | 10 |
| G25L8 | 250x80 | 16.0x7.5 | 0.62 | 230 | 10 |
| G30L8 | 300x80 | 16.0x7.5 | 0.66 | 230 | 10 |
| G40L8 | 400x80 | 16.0x7.5 | 0.74 | 230 | 10 |
| G20L | 200x100 | 19.5x9.5 | 1.00 | 350 | 10 |
| G25L10 | 250x100 | 19.5x9.5 | 1.06 | 350 | 10 |
| G30L10 | 300x100 | 19.5x9.5 | 1.13 | 350 | 10 |
| G40L10 | 400x100 | 19.5x9.5 | 1.26 | 350 | 10 |
| G50L10 | 500x100 | 19.5x9.5 | 1.38 | 350 | 10 |
| G25L | 250x120 | 22.0x10.5 | 1.62 | 400 | 10 |
| G30L12 | 300x120 | 22.0x10.5 | 1.70 | 400 | 10 |
| G40L12 | 400x120 | 22.0x10.5 | 1.86 | 400 | 10 |
| G50L12 | 500x120 | 22.0x10.5 | 2.03 | 400 | 10 |
| G60L12 | 600x120 | 22.0x10.5 | 2.19 | 400 | 10 |
| G30L | 300x140 | 25.0x12.0 | 2.42 | 500 | 10 |
| G40L | 400x120 | 25.0x12.0 | 2.55 | 550 | 10 |
| G50L | 500x120 | 25.0x12.0 | 2.76 | 550 | 10 |
| G60L | 600x120 | 25.0x12.0 | 2.97 | 550 | 10 |
| G80L | 800x120 | 27.0x13.0 | 3.80 | 600 | 6 |
| G100L | 1000x120 | 27.0x13.0 | 4.30 | 600 | 6 |
