- The clamping pressure is measured at the span of 150mm.
- Textured surface to secure clamping.
| ITEM NO |
SPAN
DEPTH |
RAIL |
WEIGHT |
PRESSURE |
PACK |

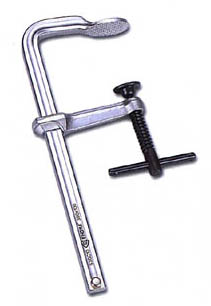

| S15C6 | 150x60 | 19.5x9.5 | 0.80 | 600 | 10 |
| S20C8 | 200x80 | 22.0x10.5 | 1.10 | 700 | 10 |
| S20C10 | 200x100 | 25.0x12.0 | 1.50 | 800 | 10 |
| S25C10 | 250x100 | 25.0x12.0 | 1.61 | 800 | 10 |
| S30C10 | 300x100 | 25.0x12.0 | 1.72 | 800 | 10 |
| SP20C8 | 200x80 | 27.0x13.0 | 1.64 | 1200 | 10 |
| SP25C8 | 250x80 | 27.0x13.0 | 1.76 | 1200 | 10 |
| SP30C8 | 300x80 | 27.0x13.0 | 1.88 | 1200 | 10 |
| SP25C10 | 250x100 | 30.0x15.0 | 2.51 | 1500 | 10 |
| SP40C10 | 400x100 | 30.0x15.0 | 2.98 | 1500 | 6 |
| SP60C10 | 600x100 | 30.0x15.0 | 3.62 | 1500 | 6 |
| SP30C12 | 300x120 | 40.0x20.0 | 4.64 | 3200 | 6 |
| SP50C12 | 500x120 | 40.0x20.0 | 5.76 | 3200 | 6 |
| SP100C12 | 1000x120 | 40.0x20.0 | 8.55 | 3200 | 4 |
