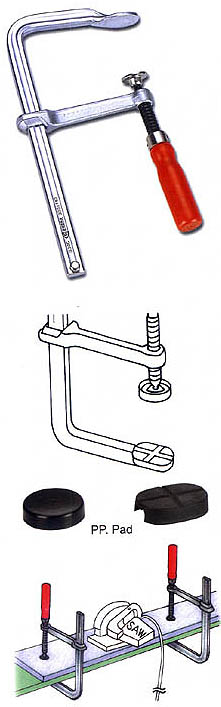

(Wooden Handle)
- The clamp pressure is based on the span 150mm.
- Rail 27x13 & 30x15, Span 2000,2500, 3000, 3500mm, etc. special sizes could be ordered.
- Extra P.P. pads can be ordered together with the clamp or separately as accessories.
| ITEM NO |
SPAN
DEPTH |
RAIL |
WEIGHT |
PRESSURE |
PACK |
| G10C | 100x50 | 11.5x5.7 | 0.18 | 150 | 10 |
| G20C5 | 200x50 | 11.5x5.7 | 0.22 | 150 | 10 |
| G25C5 | 250x50 | 11.5x5.7 | 0.25 | 150 | 10 |
| G30C5 | 300x50 | 11.5x5.7 | 0.27 | 150 | 10 |
| G12C | 120x60 | 13.5x6.5 | 0.30 | 200 | 10 |
| G20C6 | 200x60 | 13.5x6.5 | 0.35 | 200 | 10 |
| G25C6 | 250x60 | 13.5x6.5 | 0.38 | 200 | 10 |
| G30C6 | 300x60 | 13.5x6.5 | 0.41 | 200 | 10 |
| G16C | 160x80 | 16.0x7.5 | 0.50 | 250 | 10 |
| G20C8 | 200x80 | 16.0x7.5 | 0.53 | 250 | 10 |
| G25C8 | 250x80 | 16.0x7.5 | 0.58 | 250 | 10 |
| G30C8 | 300x80 | 16.0x7.5 | 0.62 | 250 | 10 |
| G40C8 | 400x80 | 16.0x7.5 | 0.70 | 250 | 10 |
| G20C | 200x100 | 19.5x9.5 | 0.88 | 350 | 10 |
| G25C10 | 250x100 | 19.5x9.5 | 0.94 | 350 | 10 |
| G30C10 | 300x100 | 19.5x9.5 | 1.00 | 350 | 10 |
| G40C10 | 400x100 | 19.5x9.5 | 1.13 | 350 | 10 |
| G50C10 | 500x100 | 19.5x9.5 | 1.26 | 350 | 10 |
| G25C | 250x120 | 22.0x10.5 | 1.23 | 600 | 10 |
| G30C12 | 300x120 | 22.0x10.5 | 1.31 | 600 | 10 |
| G40C12 | 400x120 | 22.0x10.5 | 1.47 | 600 | 10 |
| G50C12 | 500x120 | 22.0x10.5 | 1.64 | 600 | 10 |
| G60C12 | 600x120 | 22.0x10.5 | 1.80 | 600 | 10 |
| G80C12 | 800x120 | 22.0x10.5 | 2.13 | 600 | 6 |
| G100C12 | 1000x120 | 22.0x10.5 | 2.45 | 600 | 6 |
| G30C | 300x140 | 25.0x12.0 | 1.85 | 650 | 10 |
| SG30C | 300x120 | 25.0x12.0 | 1.78 | 750 | 10 |
| SG40C | 400x120 | 25.0x12.0 | 1.91 | 750 | 10 |
| SG50C | 500x120 | 25.0x12.0 | 2.12 | 750 | 10 |
| SG60C | 600x120 | 25.0x12.0 | 2.33 | 750 | 10 |
| SG80C | 800x120 | 27.0x13.0 | 3.26 | 850 | 6 |
| SG100C | 1000x120 | 27.0x13.0 | 3.75 | 850 | 6 |
| SG125C | 1250x120 | 27.0x13.0 | 4.36 | 850 | 4 |
| SG150C | 1500x120 | 27.0x13.0 | 4.98 | 850 | 4 |
| G40C | 400x175 | 27.0x13.0 | 2.57 | 700 | 10 |
| G60C | 600x175 | 27.0x13.0 | 3.06 | 700 | 10 |
| G80C | 800x175 | 27.0x13.0 | 3.55 | 700 | 6 |
| G100C | 1000x175 | 27.0x13.0 | 4.04 | 700 | 6 |
| WD30T20 | 300x200 | 30.0x15.0 | 3.06 | 850 | 6 |
| WD40T20 | 400x200 | 30.0x15.0 | 3.38 | 850 | 6 |
| WD50T20 | 500x200 | 30.0x15.0 | 3.70 | 850 | 6 |
| WD60T20 | 600x200 | 30.0x15.0 | 3.95 | 850 | 6 |
| WD80T20 | 800x200 | 30.0x15.0 | 4.59 | 850 | 6 |
| WD100T20 | 1000x200 | 30.0x15.0 | 5.22 | 850 | 6 |
| WD40T25 | 400x250 | 30.0x15.0 | 3.61 | 650 | 6 |
| WD50T25 | 500x250 | 30.0x15.0 | 3.92 | 650 | 6 |
| WD60T25 | 600x250 | 30.0x15.0 | 4.24 | 650 | 6 |
| WD70T25 | 800x250 | 30.0x15.0 | 4.87 | 650 | 6 |
| WD100T25 | 1000x250 | 30.0x15.0 | 5.51 | 650 | 6 |
