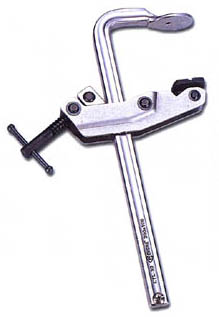

The cantilever helps to obtain maximum clamping pressure with minimum tightening forcing.
It is specifically designed for clamping inward and outward to meet various clamping applications. Simply changing the slide-in direction of the sliding arm can shift such clamping direction.
The clamping block of CTJ is a standard part for the clamp while CTD and CTV are the optional accesories.
| ITEM NO |
SPAN
DEPTH |
RAIL |
WEIGHT |
PRESSURE |
PACK |
| CTL-15 | 150x80 | 22x10.5 | 1.36 | 450 | 10 |
| CTL-20 | 200x80 | 22x10.5 | 1.44 | 450 | 10 |
| CTL-50 | 500x80 | 22x10.5 | 1.93 | 450 | 10 |
| CTL-80 | 800x80 | 22x10.5 | 2.42 | 450 | 10 |
| CTL-30 | 300x100 | 27x13.0 | 2.72 | 800 | 10 |
| CTL-60 | 600x100 | 27x13.0 | 3.46 | 800 | 8 |
| CTL-100 | 1000x100 | 27x13.0 | 4.41 | 800 | 6 |
| ITEM NO |
SPAN
DEPTH |
PACK |
| CTD-1 | 1 pec / box / 0.20kg (suit for rail 22x10.5) | 50 |
| CTD-2 | 1 pec / box / 0.30kg (suit for rail 27x13.0) | 40 |
| CTV | 1 pec / box / 0.18kg (suit for CTL series) |
50 |
