UNIT : mm

MATERIAL : AISI 1045 MEDIUM CARBON STEEL HARDNESS : HRC 38o +/- 2 SURFACE : PHOSPHATE TREATMENT

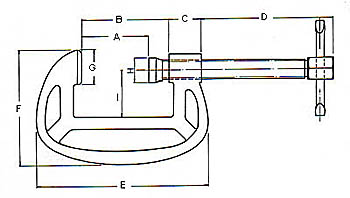

Model	A	B	C	D	E	F	G	H	I	NW(KG)
	m.m.	m.m.	m.m.	m.m.	m.m.	m.m.	m.m.	m.m.	m.m.
1" M25	25.5	36	20	49	80	58	20	16	24.5	0.2
1-1/2" M38	39	50	20	69	97	68	20	16	31	0.29
2" M50	45.8	59	21.6	87.8	114.2	70.5	22.2	15.8	31.1	0.4
3" M75	69.7	85.3	27	107.4	148.4	83.7	27.4	19	40	1.76
4" M100	98.2	117.5	32.4	143	192.2	106	31.5	22.2	49.6	1.25
5" M125	118.7	140	36.7	176.4	225	122.5	35.5	25.5	72.75	1.8
6" M150	141.4	162.1	40	198.8	254.5	137.8	41.5	25.5	75.35	2.5
8" M200	185.2	209.5	44	239.8	323	174.4	41.7	28	96	4.5
10" M250	243.5	270	44.5	330	380	203	43	28	124	6.1
12" M300	290	320	55	360	455	223	50	35	130	9.0
