Tuning knobs
Description
Material: Phenolic
With No.6-32 set screw
Straight knurl outside
Al. inlay on top
PART NO.
A
B
C
D
E
F
41031
25.3
24.7
20.3
12.0
17.0
3.99

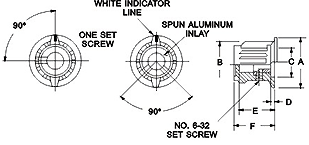

Description
Material: Phenolic
With No.6-32 set screw
Ribbed with white indicator line
Al. inlay on top
PART NO.
A
B
C
D
E
F
41032-1
20.0
17.6
12.9
2.08
14.7
17.5
41032-2
20.0
17.6
12.9
2.08
14.7
17.5
Description
Material: Phenolic
With No.6-32 set screw
Fluted on outside
Al. cap on top with black indicator line
PART NO.
A
B
C
D
E
F
41033
20.0
19.4
14.5
2.49
12.5
15.0
Description
Material: Phenolic
With No.6-32 set screw
Fluted with white indicator line
Al. cap on top
PART NO.
A
B
C
D
E
Shaft hole
41034-1
16
12.0
2.31
10.0
12.0
3.2
41034-2
16
12.0
2.31
10.0
12.0
6.4
41034-3
22.6
18.4
2.49
12.2
13.0
6.4
Description
Material: Phenolic
White epoxy painted indicator
PART NO.
D
d1
d2
H
h1
h2
41035
38
6
28
18
4
16
Description
Material: Phenolic
With epoxy painted arrow indicator
Steel fastener assembled
Brass insert with set screw
PART NO.
D
d1
d2
d3
H
h1
h2
h3
M
41036-1
25
6
17
31.5
22
7
13
19
1
41036-2
31
6
21
42
25
8
14.5
22
1
Description
Material: Phenolic
With epoxy indicator line
Brass insert with set screw
PART NO.
D
d1
d2
H
h1
h2
41037
19
6
16
13.5
3
11.5
