Tuning knobs
Description
  • Material: ABS
  • Finish & color high gloss black
  • Molded in brass insert top aluminum inlay available in dot indicator

PART NO.

 A B HOLE
41014-1 22.86 16.76 6.40 DIA
41014-2 29.21 19.56 6.40 DIA
41014-3 38.61 22.86 6.40 DIA

Description
  • Material: Gloss ABS
  • Shaft hole with brass insert, one set screw
  • Skirt area can be printed letters or not
  • Aluminum cap on top is available and optional

PART NO.

 A B C D E F G
41015-1 22.1 13.9 5.7 17.5 9 19 9
41015-2 30.8 18.5 6 18 8.7 19.8 14.5
Description
  • Material: Black phenolic
  • Straight knurl with spun aluminum to inlay and skirt

PART NO.

 A B C D E F
41017-1 36.0 23.1 19.8 1.53 12.4 15.0
41017-2 36.0 23.1 19.8 1.53 12.4 15.0

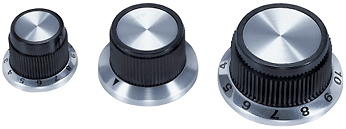

Description
  • Material: Black phenolic
  • With spun aluminum top inlay and straight knurl skirt with 0-10 numerals

PART NO.

 A B C D E F SHAFT HOLE
41019-1 19.8 15.2 12.4 1.53 9.91 12.9 3.2
41019-2 19.8 15.2 12.4 1.53 9.91 12.9 6.4
41019-3 25.4 18.8 18.5 2.29 12.7 15.0 6.4
41019-4 32.7 25.4 21.8 1.01 12.7 15.0 6.4
Description
  • Material: Black phenolic
  • Straight knurl with spun aluminum top inlay and skirt

PART NO.

 A B C D E F
41020-1 29.4 14.2 15.8 2.28 13.0 17.0
41020-2 29.4 14.2 15.8 2.28 13.0 17.0
41020-3 29.4 14.2 15.8 2.28 13.0 17.0
Description
  • Material: Black phenolic
  • With spun aluminum top inlay and straight knurl with indicator line on skirt
  • W/O aluminum skirt

PART NO.

 A B C D E F
41021-1 28.4 14.2 15.8 2.28 13.0 17.0
