Tubular handles
C661

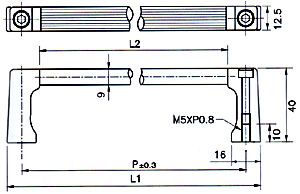

External type

 C663

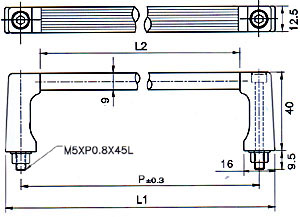

Internal type
  • Material:
    Base-PA/33
    Handle-Aluminum 6063
  • Color: Base-Black (Milk White and Blue available on order)
    Handle Neutral or Black
(mm)
ITEM NO Weight(g) ITEM NO Weight(g) Dimensions Safe
load

45kg
P L1 L2
C661-015 39 C663-015 40.5 55 71 36
C661-020 44 C663-020 45.5 88 104 69
C661-025 45 C663-025 46.5 100 116 81
C661-030 47 C663-030 48.5 120 136 101
C661-035 52 C663-035 53.5 150 166 131
C661-040 56 C663-040 57.5 180 196 161
C661-045 63.5 C663-045 65 235 251 216
C661-050 42 C663-050 43.5 70 86 51
C661-055 48 C663-055 49.5 115 131 96
C661-060 54 C663-060 55.5 159 175 140
C661-065 60 C663-065 61.5 203 219 184
C661-070 65 C663-070 66.5 248 264 229
