Pressed steel handwheels
  • Material : Steel
  • Finish : Coating or plating
  • Hub
    Bored (CB)
    Square (CS)
(mm)
ITEM NO. ITEM NO. A B C D E 1g.jpg (2349 bytes)g
CB CS
B231-015 B231-115 125 B11 V11 18 23 300
B231-025 B231-125 160 B12 V12 19 26 518
B231-030 B231-130 200 B14 V14 24 26 1385
B231-035 B231-135 250 B17 V17 28 28 1731
B231-045 B231-145 315 B19 V19 33 31 2181
B231-055 B231-155 400 B24 V24 38 31 2700
  • Material : stainless steel
  • Finish : Plating or natural
  • Hub
    Bored (CB)
    Square (CS)

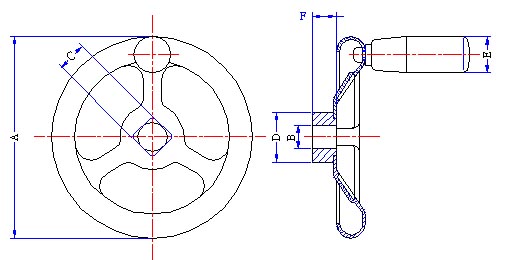

ITEM NO. ITEM NO. A B C D E F g
CB CS
B241-025 B241-125 160 B12 V12 30 26 20 518
B241-030 B241-130 200 B14 V14 40 26 24 1385
B241-035 B241-135 250 B17 V17 45 28 28 1731
