Spoked handwheel
  • Material
    Handwheel : cast iron
  • Finish
    Chrome plating
  • Hub
    Bored (CB)
    Square (CS)
  • Handle : optional at additional cost
(mm)

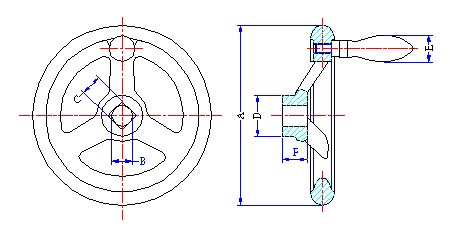

ITEM NO. ITEM NO. A B C D E 1g.jpg (2349 bytes)g
CB CS
B211-005 B211-105 80 B10 V9 24 16 360
B211-010 B211-110 100 B10 26 17 500
B211-015 B211-115 125 B12 V11 28 18 750
B211-020 B211-120 140 B14 30 19 940
B211-025 B211-125 160 B14 V12 33 20 1200
B211-030 B211-130 180 B16 35 22 1600
B211-035 B211-135 200 B18 V14 38 24 2000
B211-040 B211-140 250 B22 V17 45 28 3800
B211-045 B211-145 315 B26 V19 53 33 5800
B211-050 B211-150 400 B30 V24 65 38 9500
B211-055 B211-155 500 B34 V27 78 45 15000
