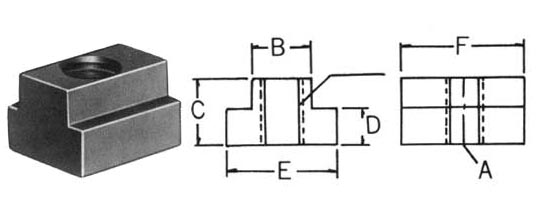

| T-Slot
nut |
 |
| ITEM NO. |
Thread |
Table Slot |
C |
D |
E |
F |
| A |
B |
| A811-520 |
5/16-18 |
3/8 |
3/8 |
1/4 |
5/8 |
7/8 |
| A811-540 |
3/8-16 |
7/16 |
1/2 |
7/32 |
11/16 |
7/8 |
| A811-560 |
1/2 |
1/2 |
9/32 |
7/8 |
7/8 |
| A811-580 |
9/16 |
5/8 |
11/32 |
7/8 |
1-1/8 |
| A811-600 |
1/2-13 |
9/16 |
5/8 |
11/32 |
7/8 |
1-1/8 |
| A811-620 |
5/8 |
5/8 |
11/32 |
1 |
1-1/8 |
| A811-640 |
11/16 |
3/4 |
7/16 |
1-1/8 |
1-1/4 |
| A811-660 |
5/8-11 |
11/16 |
3/4 |
7/16 |
1-1/8 |
1-1/4 |
| A811-680 |
3/4 |
3/4 |
15/32 |
1-1/4 |
1-1/4 |
| A811-700 |
113/16 |
1 |
9/16 |
1-1/4 |
1-1/2 |
| A811-720 |
3/4-10 |
13/16 |
1 |
9/16 |
1-1/4 |
1-1/2 |
| A811-740 |
7/8 |
1 |
9/16 |
1-1/2 |
1-1/2 |
| A811-760 |
1 |
1 |
5/8 |
1-5/8 |
1-3/4 |
| A811-780 |
1-1/16 |
1-1/8 |
11/16 |
1-5/8 |
2 |
| A811-800 |
7/8-9 |
1 |
1 |
5/8 |
1-5/8 |
1-3/4 |
| A811-820 |
1-8 |
1-1/16 |
1-1/8 |
11/16 |
1-5/8 |
2 |
