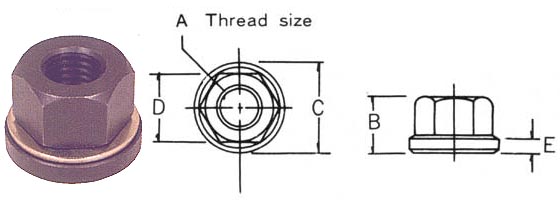

| Swivel nut |
 |
| Swivel nut |
|
| ITEM NO. | A | B | C | D | E |
| A711-520 | 5/16-18 | 3/8 | 3/4 | 9/16 | 3/32 |
| A711-540 | 3/8-16 | 1/2 | 1/2 | 11/16 | 1/8 |
| A711-560 | 1/2-13 | 11/16 | 11/16 | 7/8 | 5/32 |
| A711-580 | 5/8-11 | 13/16 | 13/16 | 1-1/16 | 3/16 |
| A711-600 | 3/4-10 | 1 | 1 | 1-1/4 | 1/4 |
| A711-620 | 7/8-9 | 1-1/8 | 1-1/8 | 1-7/16 | 1/4 |
| A711-640 | 1-8 | 1-1/4 | 1-1/4 | 1-5/8 | 1/4 |
