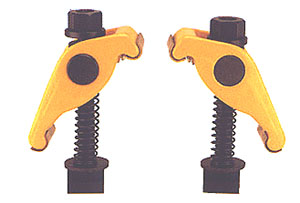

PIVOT CLAMP
	The clamping height is adjustable. With brass plate under the clamp arm for protecting the working material from damage By using spherical F-Flange nut, it will be assured to clamp the material tightly The clamping arm is forged

Item No.	Table T-slot size	Stud X L size	"T" Nut No	Spherical Flange nut No	Body	Shaft O.D.	Clamping height
A111-540	7/16"	3/8-16x4"	A811-540	A731-540	2-1/4x1-1/4"	5/8	0 or 2"
A111-560	1/2"		A811-560
A111-580	9/16"		A811-580
A111-600	9/16"	1/2-13x5"	A811-600	A731-560	4-1/2x1-3/4	7/8	0 or 3-1/2"
A111-620	5/8"		A811-620
A111-640	11/16"		A811-660
A111-660	11/16"	5/8-11x6"	A811-680	A731-580	5-1/8x2	1-1/8	0 or 4"
A111-680	3/4"		A811-700
A111-700	13/16"		A811-720
A111-720	13/16"	3/4-10x7"	A811-740	A731-600	6-1/8x2-1/4	1-1/4	0 or 4-3/4"
A111-740	7/8"		A811-760
A111-760	1		A811-780
A111-780	1-1/16"	1-8x8"	A811-840	A731-640	7x2-7/8	1-1/2	0 or 6"
